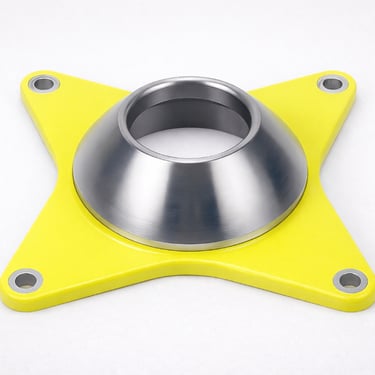

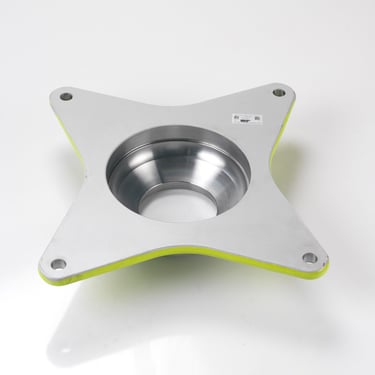

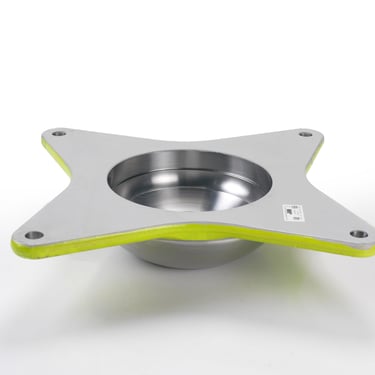

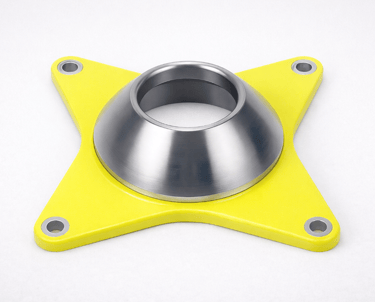

Center Pivot
Precision-machined center pivot component designed for freight wagon bogies.
Ensures controlled load transfer, reliable articulation and long service life under heavy-duty operating conditions.

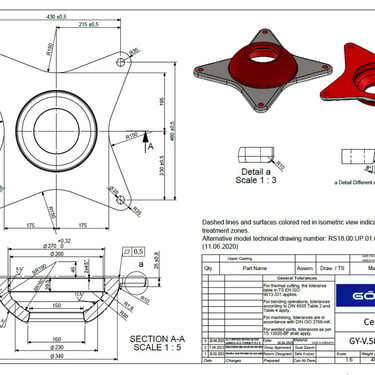

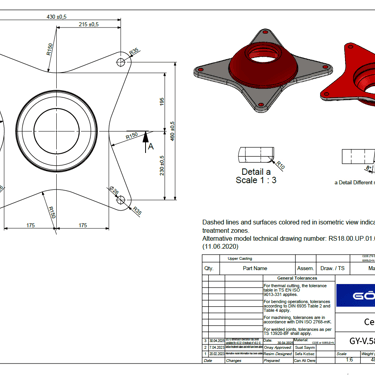

Mounting / Geometry
Corner hole diameter: Ø26 mm
Corner radius: R35
Main contour radius: R150
Inclination detail: ≈ 8° (alternative manufacturing method)
Section A–A
Inner opening: Ø230 mm
Bottom width: 160 mm
Central opening width: 150 mm
Main Dimensions
Overall width: 430 ±0.5 mm
Overall height: 460 ±0.5 mm
Inner bore diameter: Ø260 mm
Outer reference diameter: Ø270 mm (+0.32 / 0)
Section height (pivot area): 230 ±0.5 mm
Part No.: GY-V.58.04.01.01
